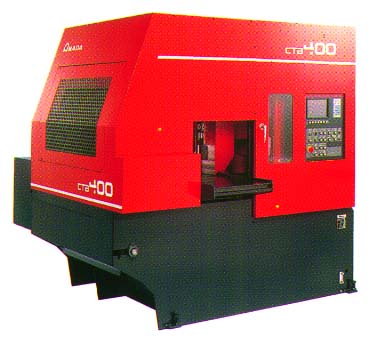

Amada CTB-400 - CNC Programmable Automatic Bandsaw
|
 |
|
CTB-400
Machine Highlights
-
Optimal
Cutting Control
-
16.75" Cutting
Capacity Round
-
16.75" x
16.75"
Cutting Capacity Rect.
-
Frequency
Inverter Drive
-
Chip Conveyor
-
Automatic
Blade Guide Setting
-
Full Travel
Front & Rear
Vise
|
|
Specifications |
|
Machine
Features |
| |
|
|
|
Saw Capacity |
|
Standard Features |
|
Round |
16.75" |
|
-
Preset Of Auto Trim Cut |
|
Square |
16.75" x 16.75" |
|
-
Motion Detector |
|
Rect (W x H) |
16.75" x 16.75" |
|
-
Material Separation After Cut |
|
Max. Load |
5,800 lbs |
|
-
Re-Circulating Coolant System |
|
Saw Blade |
|
-
Self Diagnostics |
|
Speed
(fpm) |
45-490 |
|
-
Safety Interlocks |
|
Size |
15'5-1/2"
x 1-1/2" |
|
-
Anti Vibration Guide Roller |
|
Motor Output |
|
-
Cutting Detector |
|
Blade Drive |
10 hp |
|
-
Direct Blade Drive |
|
Hydraulic |
2 hp |
|
- Plasma Display |
|
Coolant |
1/4 hp |
|
- Roller Table |
|
Fluid Capacity |
|
- Chip Conveyor |
|
Hydraulic |
9.2 gal |
|
-
Automatic Blade Guide Setting |
|
Coolant |
60 gal |
|
-
Full Travel Front & Rear
Vise |
|
Mach. Weight |
|
Optional Accessories |
|
Gross
(lbs) |
7,050 |
|
-
Roller Table |
|
Dimensions |
|
- Conversion Transformer |
|
Table Height |
39.375" |
|
|
|
Floor Space |
89.9"W x 89"L |
|
|
|
Max. Height |
90.7" |
|
|
Design and specifications are subject to
change without notice or obligation.
|
