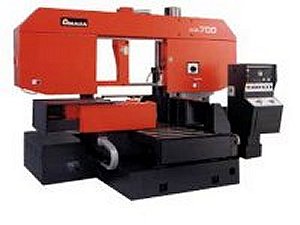

Amada HA-700 - Fully Automatic Bandsaw
|
 |
HA-700
Machine Highlights
-
9 Times Multi
Index
-
28" Cutting
Capacity Round
-
32" x 28"
Cutting Capacity Rect.
-
Variable Blade
Speed Drive
-
Power Chip Conveyor
-
Light Beam
Marking
-
Remote Blade
Guide Control
|
|
Specifications |
Machine
Features |
| |
|
|
Saw Capacity |
Standard Features |
|
Round |
28" |
-
Blade Hour Meter |
|
Square |
28" x 28" |
-
Motion Detector |
|
Rect (W x H) |
32" x 28" |
-
Wheel Cover Limit Switch |
|
Max. Load |
26,400 lbs |
-
Hydraulic Insert Clamp |
|
Saw Blade |
-
Piece Counter |
|
Speed
(fpm) |
46-315 |
-
Pressure Flow Control Valve |
|
Size |
24'11"
x 2" |
-
Cutting Detector |
|
Motor Output |
-
9 Times Multi Index |
|
Blade Drive |
10 hp |
- Variable Blade Speed Drive |
|
Hydraulic |
3 hp |
- Power Chip Conveyor |
|
Coolant |
1/3 hp |
- Light Beam Marking |
|
Fluid Capacity |
- Remote Blade Guide Control |
|
Hydraulic |
21.1 gal |
|
|
Coolant |
37 gal |
|
|
Mach. Weight |
Optional Accessories |
|
Gross
(lbs) |
14,240 |
-
Vertical Clamps |
|
Dimensions |
- Vise Pressure Control Valve |
|
Table Height |
27.6" |
-
Idler Roller Table |
|
Floor Space |
170"W x 95"L |
-
Mist Coolant System |
|
Max. Height |
107" |
|
Design and specifications are subject to change without notice or obligation.
|
