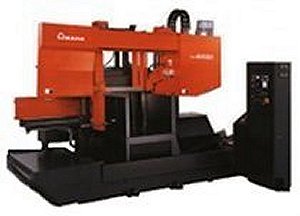

Amada HKB-6050 - Fully Automatic Bandsaw
|
 |
HKB-6050
Machine Highlights
-
Full Capacity
Bundle Vise
-
20" Cutting
Capacity Round
-
24" x 20"
Cutting Capacity Rect.
-
Automatic Trim
Cut
-
Auto Guide Arm
Positioning
-
NC Back Gauge
Auto Feed
-
Blade
Deviation Monitor
|
|
Specifications |
Machine
Features |
| |
|
|
Saw Capacity |
Standard Features |
|
Round |
20" |
-
Inverter Blade Speed Drive |
|
Square |
20" x 20" |
- Shaftless Chip Conveyor
|
|
Rect (W x H) |
24" x 20" |
-
Self Diagnostics |
|
Max. Load |
9,500 lbs |
-
24" Feed Stroke |
|
Saw Blade |
-
Piece Counter |
|
Speed
(fpm) |
50-325 |
-
Digital Cutting Rate Display |
|
Size |
19'4"
x 2" |
-
Full Capacity Bundle Vise |
|
Motor Output |
-
Automatic Trim Cut |
|
Blade Drive |
7.5 hp |
-
Auto Guide Arm Positioning |
|
Hydraulic |
2 hp |
- 99 Station NC Back Gauge |
|
Coolant |
1/4 hp |
-
Blade Deviation Monitor |
|
Fluid Capacity |
|
|
Hydraulic |
N/A |
|
|
Coolant |
N/A |
|
|
Mach. Weight |
Optional Accessories |
|
Gross
(lbs) |
7,700 |
-
78" Index Stroke |
|
Dimensions |
- Front Hydraulic Vise |
|
Table Height |
28.5" |
- CNC Front Vise Index |
|
Floor Space |
123"W x 138"L |
-
Roller Table |
|
Max. Height |
87" |
-
Mist Coolant System |
Design and specifications are subject to change without notice or obligation.
|
